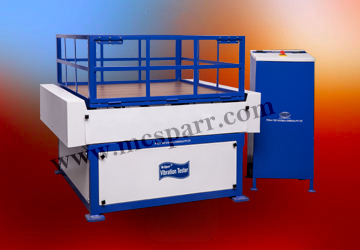

Vibration Tester
We McSparr Test Systems & Chemicals Pvt. Ltd. are Manufacturers, Suppliers, Provider, Exporters, Traders, Dealers of Vibration Tester.This test is used for determining the packaging resistance to transit damage, normal capacity 50 kg, with VFD drive variable speed, higher capacities are available on request
RPM Indicator With Digital Display.
Variable Speed 100 To 400 RPM.
Frequency Variable From 1.6Hz To 6.66 Hz
Standard Table Size 1mx1m With Wooden Laminated.
Railing Gaurd 300 mm Height.
Mode of Test 90° Out Of Phase, 180° Out Of Phase And Random.
Suitable to test following standards
- Astm D999-96
- IS 7028 (Part Ii) 1973
- Fefco Tm 52 1999
- Tappi T817 Om-89
- Suitable IS standard 7028 (part VI) 1973
We McSparr Test Systems & Chemicals Pvt. Ltd. are deeply engaged in offering a wide array of Vibration Tester to our valuable Clients located in Mumbai, in Navi Mumbai, in Thane and all over India.
Vibration Tester
TECHNICAL SPECIFICATION OF VIBRATION TESTER
- VIBRATION MODE-IN PHASE 90 Degree, 180 Degree
- OUT OF PHASE and RANDOM VFD IS USED FOR SETTING THE SPEED
- AMPLITUDE-25mm Fixed
- FREQUENCY -1.6Hz to 6.66 Hz ( 100 to 400 RPM)
- TABLE SIZE- 1000 x 1000 mm
- CAPACITY- 50/100kG
- TABLE SIZE AND CAPACITY AVAILABLE ON REQUEST
